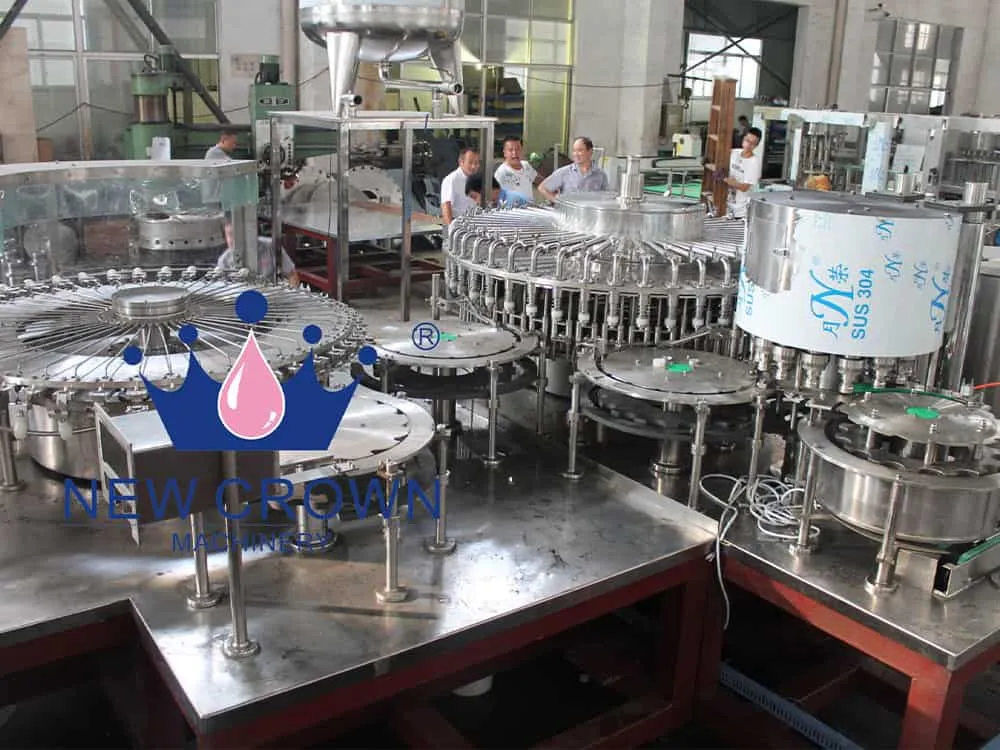

Automatic Wine Filling Machine | High-Precision Rotary & Gravity Filling for Wineries

Automatic Wine Filling Machine | High-Precision Rotary & Gravity Filling for Wineries

Boost wine production efficiency with our automatic wine filling machines—rotary, gravity, or piston-driven for red, white & sparkling wine. Hygienic, precise & customizable for wineries.
Get A Quote

Advantages of Wine Filling Machine

Automatic Alarm and Replenishment

Horizon swirl air power caps sorting device is used to avoid damagining the surface of caps,and when there is a shortage of caps in the caps storage tank,an alarm signal will be generated and the caps will be fed automatically.

Automatic Control

The amount of the drinks in the drink tank can be controlled automatically.

Automatic Stop

The filling and capping will be stopped automatically when there is no bottle.

Automatic Shutdown

When bottles are cramped wrongly or caps are not avaliable, the machine can be stopped automatically.

Automatic Wine Filling Machine | High-Speed Rotary & Gravity Filling for Wineries

Bottle Water Filling Machine VIEW DETAILS

Bottle Water Filling Machine

Small Scale Glass Bottled Beer Filling Machine VIEW DETAILS

Small Scale Glass Bottled Beer Filling Machine

Aluminum Bottle Beer Filling Machine VIEW DETAILS

Aluminum Bottle Beer Filling Machine

Crown Cap Beer Bottle Filling Machine VIEW DETAILS

Crown Cap Beer Bottle Filling Machine

Technical Specifications

Model XGF16-12-6 XGF18-18-6 XGF24-24-8 XGF32-32-10 XGF40-40-12 XGF50-50-15 XGF60-60-15
Washing heads 16 18 24 32 40 50 60
Filling heads 12 18 24 32 40 50 60
Capping heads 6 6 8 10 12 15 50
Capacity (b/h) 2000-4000 5000-7000 8000-10000 10000-13000 13000-15000 15000-20000 20000-24000
Suitable bottle diameter (mm) φ=50-110mm H=170-310mm (Volume: 200-2000ml)
Main Motor power 4.0kw 4.2kw 5.2kw 6.2kw 7.5kw 8.2kw 9.5kw
Dimension 2230×1630×2250 2600×1965×2250 2900×2200×2250 3880×2200×2250 3700×3000×2350 4500×3500×2350 5500×4500×2350
Weight (Kg) 2500 3500 4200 6000 7000 7600 9800

FAQ

When you can arrange the delivery after customers place the order ?

Normally production time is around 30-60days,the exactly depend on what kind of machine you ordered .
According your machines order,we will arrange one or two engineers to your factory,it will take about 1 to 2 weeks.
We can accept L/C,West union,TT
We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation,food,and so on.USD 100/DAY/PERSON
