We can produce and offer you complete bottle water filling line for different bottle shape from 200-2000ml, and 3-10L bottle. We can also do as your need. high filling speed for mineral water, drinking water, can share one machine with several PET bottles.
| Model | XGF16-12-6 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-12 | XGF50-50-15 | XGF60-60-15 |
|---|---|---|---|---|---|---|---|
| Washing heads | 16 | 18 | 24 | 32 | 40 | 50 | 60 |
| Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 |
| Capping heads | 6 | 6 | 8 | 10 | 12 | 15 | 50 |
| Capacity (b/h) | 2000-4000 | 5000-7000 | 8000-10000 | 10000-13000 | 13000-15000 | 15000-20000 | 20000-24000 |
| Suitable bottle diameter (mm) | φ=50-110mm H=170-310mm (Volume: 200-2000ml) | ||||||
| Main Motor power | 4.0kw | 4.2kw | 5.2kw | 6.2kw | 7.5kw | 8.2kw | 9.5kw |
| Dimension | 2230×1630×2250 | 2600×1965×2250 | 2900×2200×2250 | 3880×2200×2250 | 3700×3000×2350 | 4500×3500×2350 | 5500×4500×2350 |
| Weight (Kg) | 2500 | 3500 | 4200 | 6000 | 7000 | 7600 | 9800 |
Bottle Water Filling Machine is made as our customer’s need, high filling speed for mineral water, drinking water, can share one machine with several PET bottles. It’s used in producing all kinds mineral water, drinking water, non-gas drink contained in PET bottle. It adopts the normal pressure filling technology.
1. The water filling machine is controlled by PLC with touch-screen as the interface between human and machine.
2. The amount of the drinks in the drink tank can be controlled automatically.
3. The filling and capping will be stopped automatically when there is no bottle.
4. When bottles are cramped wrongly or caps are not avaliable, the machine can be stopped automatically.
5. Horizon swirl air power caps sorting device is used to avoid damagining the surface of caps,and when there is a shortage of caps in the caps storage tank,an alarm signal will be generated and the caps will be fed automatically.

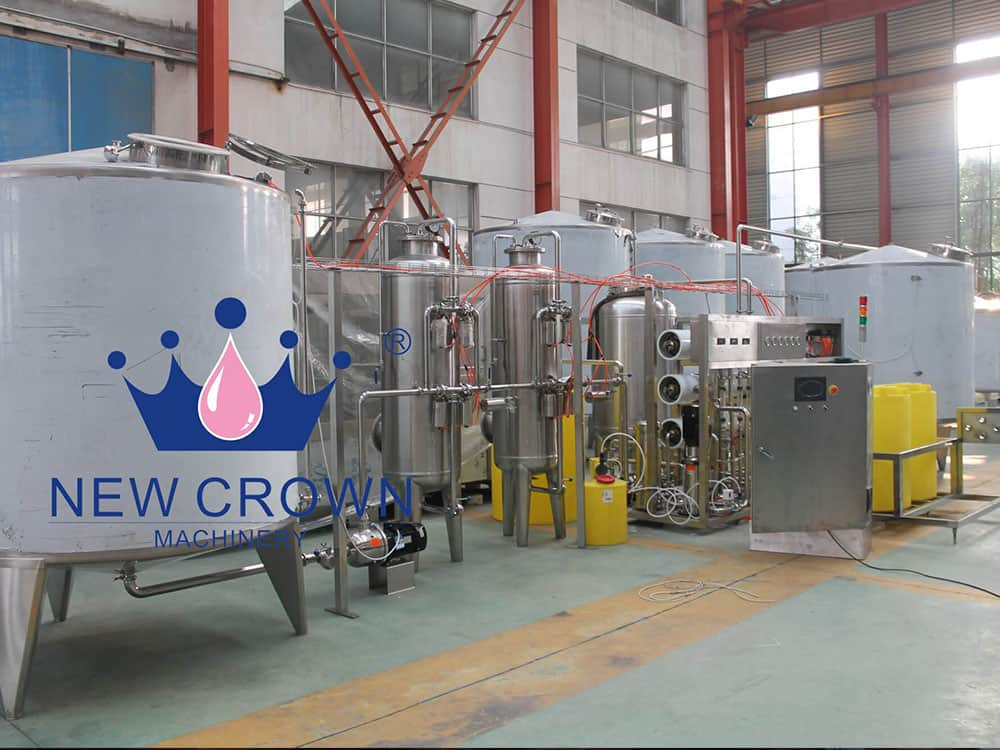

Bottle Water Filling Machine is one of the cleaning equipment in water treatment system basing on the water quality of clients. It is widely applied to the separation, concentration and purification of substances.
All New crown Machines will be packed with high quality plastic film, then put into the wood box increase there is crash and damages.
1, When you can arrange the delivery after customers place the order ?
A: Normally production time is around 30-60days,the exactly depend on what kind of machine you ordered .
2, How long time for installation?
A: According your machines order,we will arrange one or two engineers to your factory,it will take about 1 to 2 weeks.
3, What kind payment be accepted by New crown?
A: We can accept L/C,West union,TT
4, How to install my machines when it arrives?how much the cost?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation,food,and so on.USD 100/DAY/PERSON
The machines should have good maintenance twice for 6 months,and for installation, you can get the manual guide from Newcrown, or we can sent our engineers to help you.
