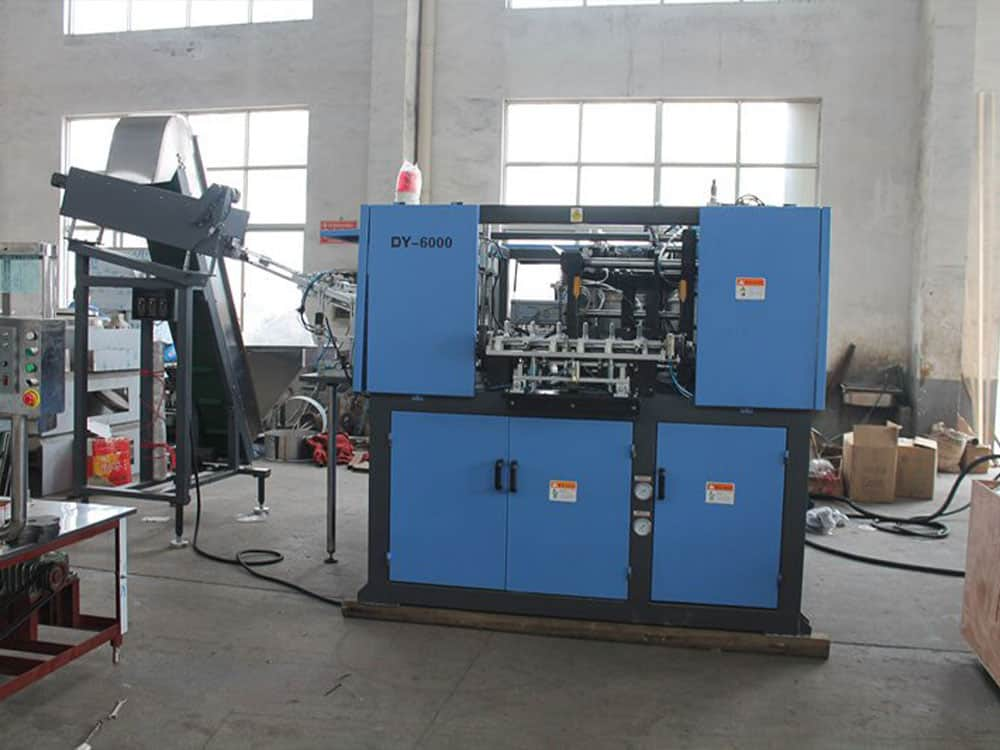

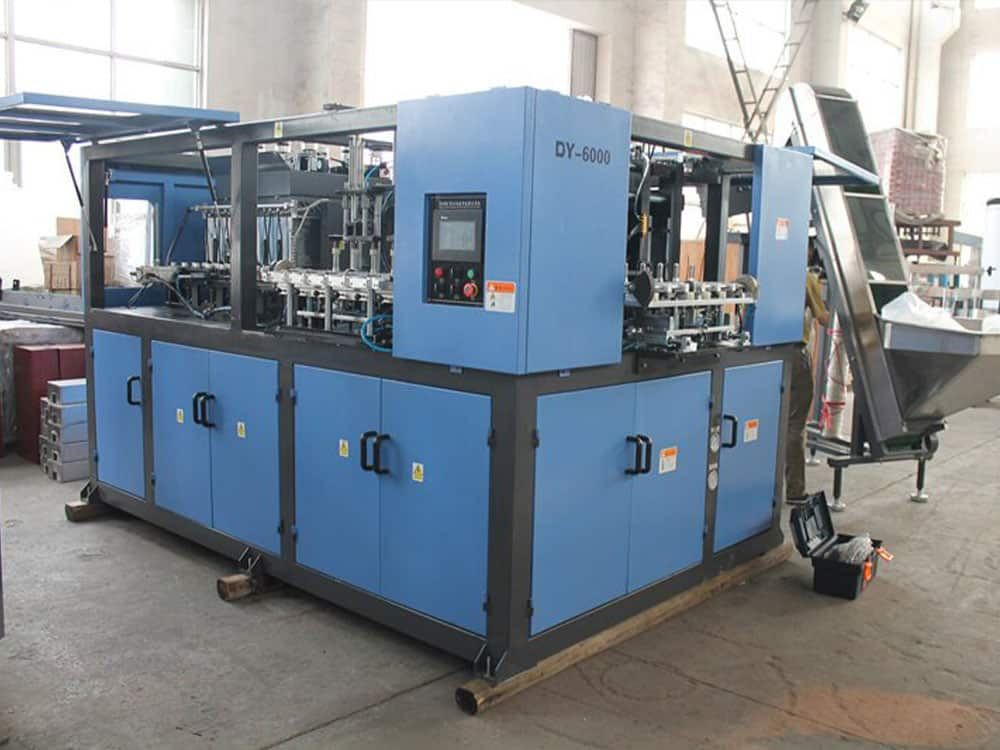

Automatic 6 cavity bottle blow molding machine

Automatic 6 cavity bottle blow molding machine is suitable for big capacity bottle blowing, PET/PP/PE bottle preforms.

Product Gallery

Product Video

Technical Specifications

		Unit	DY-6000
		Unit	DY-6000
Molding	Clamping force	kg	48000
	Clamping stroke	mm	125
	Stretching stroke	mm	350
	Bottom stroke	mm	30-70
	Cavity pitch	mm	120
	Number of cavity	pcs	6
Container	Max. container volume	Ltr	1.5
	Neck diameter range	mm	18-38
	Max. container diameter	mm	115
	Max. container height	mm	320
	Carriage unit	pcs	166
Theoretical output		BPH	6000
Electric system	Total power	kw	78
	Heating power	kw	40
	Max. heating power	kw	72
Air system	Operating pressure	Kg/cm2	7
	Low air consuming	Ltr/min	1500
	Blowing pressure	Kg/cm2	35
	High air consuming	Ltr/min	7400
Air dryer	Operation pressure	Kg/cm2	2-4
	Temperature		10-12
	Consuming	Kcal/hr	11400
	Flow rate	Ltr/min	90
Water chiller	Operation pressure	Kg/cm2	2-4
	Temperature		30
	Consuming	Kcal/hr	54000
	Flow rate	Ltr/min	180
Machine size	Dimension	Mm	315021502200
Machine size	Weight	kg	4500
Remarks	1, All data standard indication for 0.6L bottle; 2, The actual output depends on the perform quality and bottle shape; 3, Specifications are subject to change without notice; 4, Please provide the stable ambient temperature;

Description

Automatic 6 cavity bottle blow molding machine is suitable for PP/PE/PET bottle preform bottle making. capacity can reach 5400BPH.
we also offer bottle design if you’re interested.
